From the Pioneers of Piezo Shockwave Therapy: One platform with multiple therapy sources for case-specific treatments on animals of various shapes and sizes.
PiezoWave2T VET is a focused, non-invasive shockwave system that supports tissue healing, relieves pain, and gives clinicians precise control over every session. Multiple therapy sources with adjustable penetration depths from 0–172 mm and a wide energy range from 0–0.8 mJ/mm² provide treatment options for equine, small animal, farm animal, exotic, and zoo patients. Quiet, efficient, and built for the long run.
System Overview
Therapy Sources
Evidence & Education
Configuration Examples
Precisely targeted therapy through direct focusing
The shockwave forms inside the tissue, not at the skin. Reaches deep structures precisely.
Unique, one of a kind linear focused therapy source
A linear high volume focal zone provides effective treatment for large areas of muscle and fascia.
Our longevity guarantee:
Five million pulses per source
No regular refurbishing required. Operating cost is effectively zero.
More energy levels than other veterinary shockwave systems
29 Energy Levels: From featherlight soft-tissue work to deep bone-healing intensity.
More energy levels than other veterinary shockwave systems
29 Energy Levels: From featherlight soft-tissue work to deep bone-healing intensity.
Fear-free workflow for patients and clinicians
Quiet operation. Sedation rarely needed. Most patients, even cats, stay calm throughout treatment.
Therapy that travels wherever work takes you
Mobile setup at 30 lbs. Runs from a soft travel bag, plugs into standard outlets, no cart.
Therapy Sources
PiezoWave2T VET accommodates multiple veterinary therapy sources. The three most commonly used veterinary therapy sources are F7G3, FB10G6, and FBL10x5G2. Therapy sources are purchased individually and can be included with the initial system or added later. Source selection is based on patient population and practice caseload. All therapy sources last for at least 5 million pulses. ELvation is the only company to offer piezo therapy sources with dual-layer piezoceramic elements, such as the FB10G6 and FBL10x5G2.
Single-Layer
Double-Layer

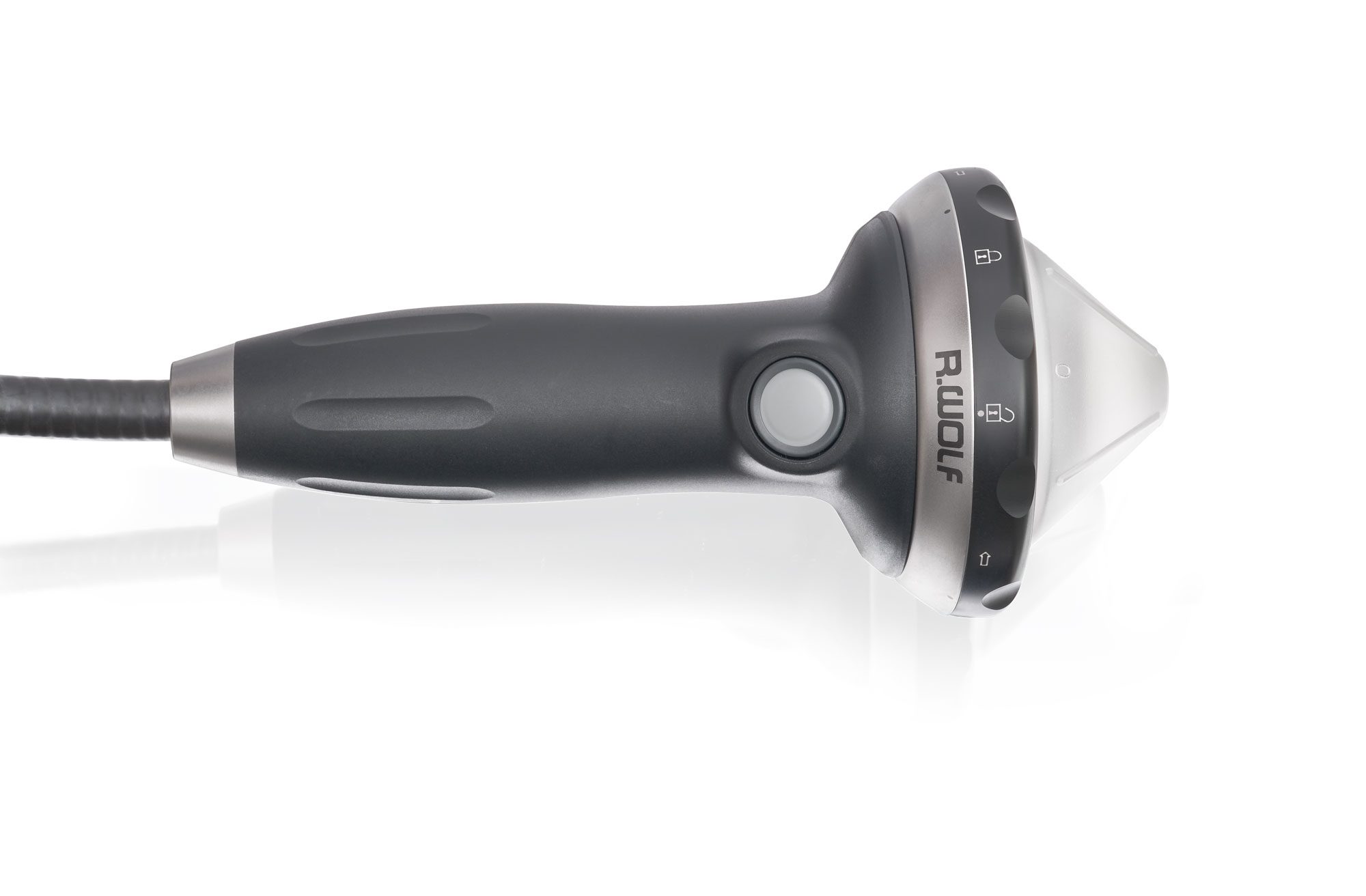

F7G3
Our most compact therapy source.
F7G3 is the primary therapy source for small animal treatments. It provides a compact focal zone with energy up to 0.4 mJ/mm² and seven central penetration depths from 0–30 mm. It provides sufficient depth for joints and soft tissue in canine patients of all sizes, while remaining small enough for cats and teacup-sized dogs.
Double-Layer

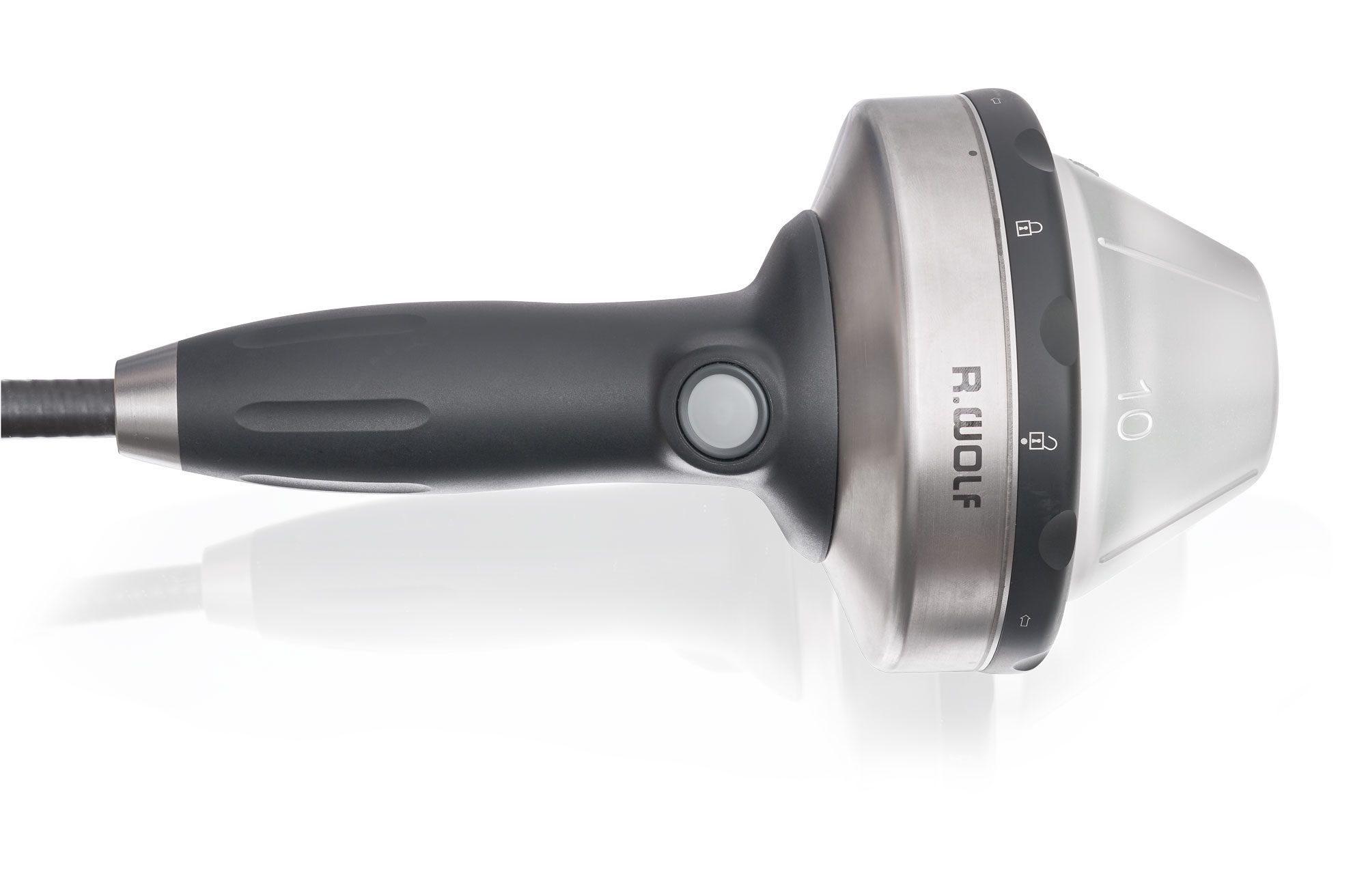

FB10G6
Double-layer technology for deep reach.
FB10G6 is an equine therapy source commonly used in equine sports medicine. It provides a focal zone with energy up to 0.72 mJ/mm² and seven central penetration depths up to 60 mm, supported by a double layer of piezoceramic elements. This therapy source is variable enough to treat joints, distal limb tendons and ligaments, and deeper muscle targets of the caudal cervical and sacral regions.

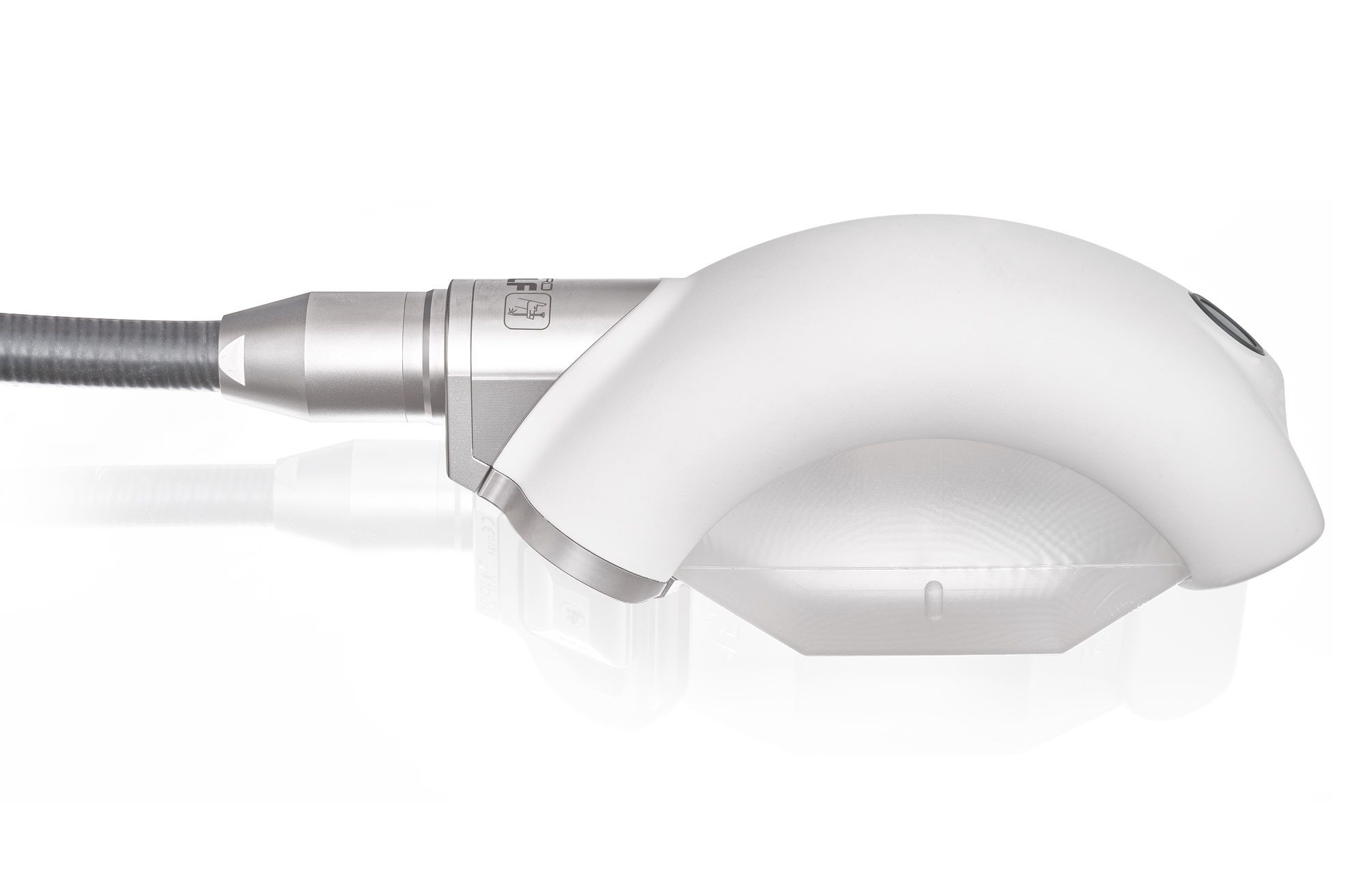

FBL10x5G2
Linear focus for extended treatment area.
FBL10x5G2 uses a unique geometry of double-layered piezoceramic elements to provide a 5 cm broad linear focal zone ideal for treating larger tissue volumes. It has energy up to 0.16 mJ/mm² and a maximum central penetration depth of 20 mm. In small animal care, it is commonly used for paraspinal muscles, larger muscle bodies, trigger points, and fascia. In equine care, it is often used for suspensory branches, SDFT injuries, as well as superficial muscle and fascia.

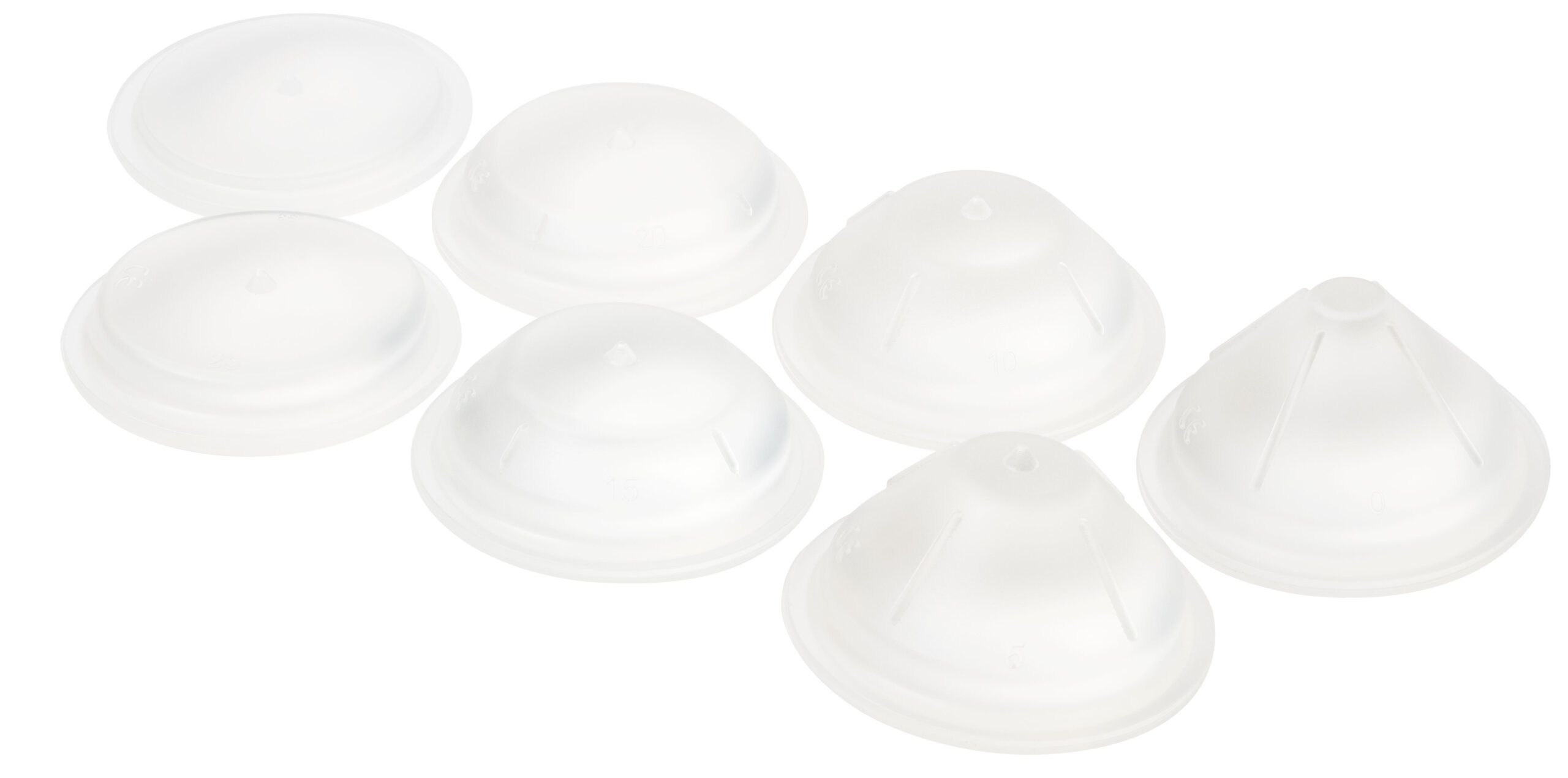

Gel Pads
With Piezowave2T VET’s site-specific focused energy, gel pads are used to apply energy at the correct depth of targeted tissue.
It is best to use a combination of manual palpations and diagnostic imaging to determine the area of damaged tissue, the depth of penetration required to reach it, and the optimal angle of entry for the therapy source. If imaging is not possible, the correct stand-off gel pad can be chosen based on knowledge of the anatomy, and the ability of the PiezoWave2T VET to scan for and flare pain points that are identified by the patient’s bio feedback. When treating different anatomical structures in one session, it may be necessary to use multiple different gel pads.
Evidence & Education

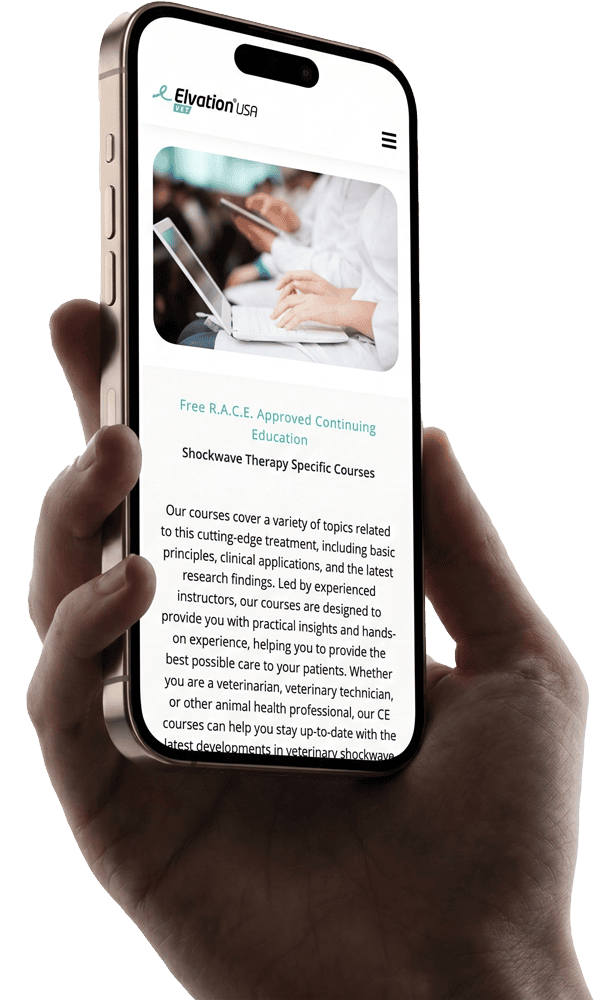

Veterinary Resources Hub:
Evidence, Education and Experience
Responsible clinical application of focused shockwave is built on scientific evidence, practical experience, and continuous education. ElvationUSA VET supports veterinary professionals across all three. We’ve curated resources for you and your team to understand the technology, design appropriate protocols, and determine the best applications for use.
With a peer-reviewed shockwave bibliography in veterinary medicine, hands-on training recognized by RACE, the monthly user forum that connects clinicians actively running the system, and much more.
Veterinary Resources Hub:
Evidence, Education and Experience
Responsible clinical application of focused shockwave is built on scientific evidence, practical experience, and continuous education. ElvationUSA VET supports veterinary professionals across all three. We’ve curated resources for you and your team to understand the technology, design appropriate protocols, and determine the best applications for use.
With a peer-reviewed shockwave bibliography in veterinary medicine, hands-on training recognized by RACE, the monthly user forum that connects clinicians actively running the system, and much more.
Insights & Knowledge
Our blog offers context, background and perspectives on piezo shockwave therapy, clinical developments and technological principles. A starting point for continuous learning and professional exchange.
Continuing Education
Continuing education recognized by RACE, webinars and long-form clinical conversations with leading veterinary practitioners, hands-on training across the U.S., monthly user forum for live case discussion.
Configuration Examples
Configuration Examples
Equine Care
Equine practice runs at the barn, on the truck, between competition windows. PiezoWave2T VET was built for that pace. Deep tissue reach where radial systems stop, sedation-free sessions even on horses mid-season, and a 30-lb mobile setup that runs from a soft travel bag. The way equine work actually happens.
Small Animal Care
In rehab, the tool that works is the one your patient lets you use. The PiezoWave2T VET is quiet enough for sensitive cats to stay on the table, fine-tuned enough for the senior dog who’s already nervous, and predictable enough that owners stop dreading the appointment. Most patients walk back through the door for the next session, and the one after that.
Would you like to learn more about the PiezoWave2T VET shockwave system?
Our team will answer your questions and help you make informed decisions about adding focused shockwave therapy to your toolbox.
